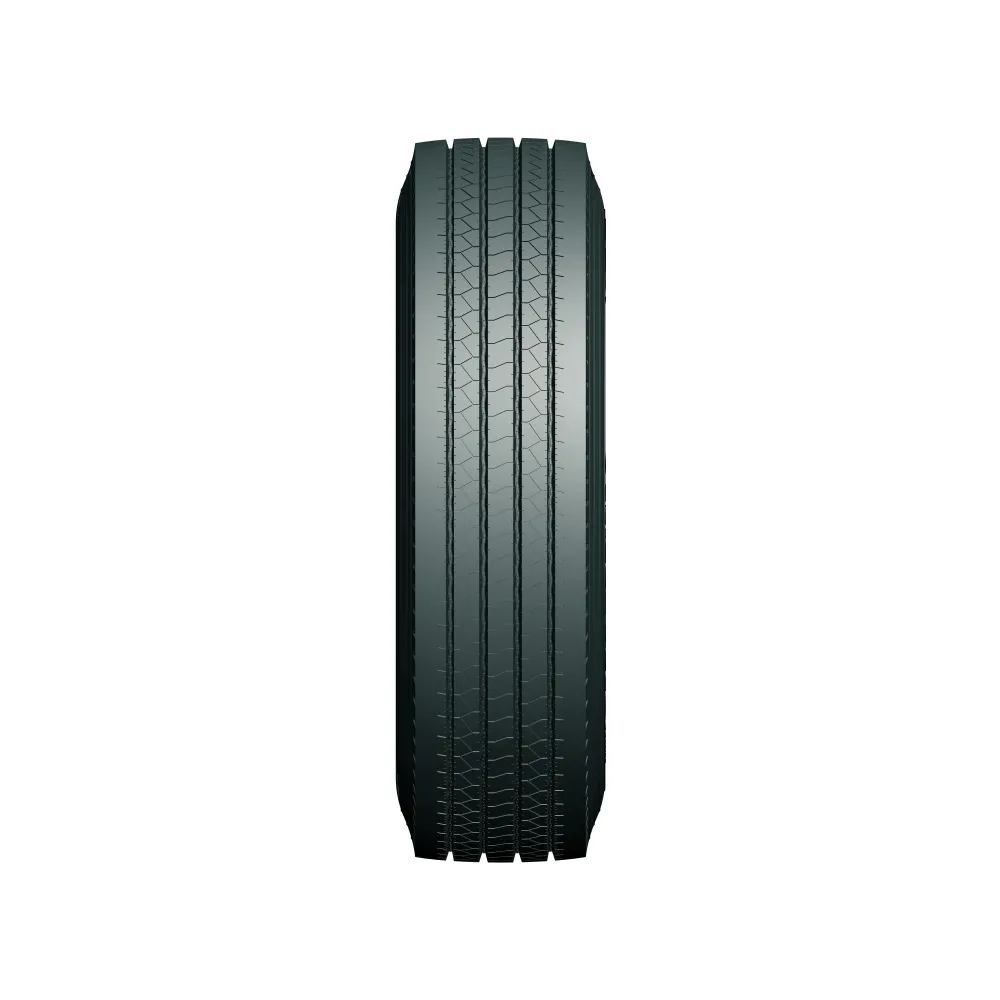

NAS001
Contact Us
info@tiresbyrhino.com
+1 407 777 5598
+1 407 777 5598
PRODUCT DESCRIPTION
Square shoulder effectively reduces irregular wear.
Straight main grooves reduce rolling resistance and improve drainage and handing performance.
Stone ejector eject stones, effectively prevent the bottom crack and protect the body.
Miniature sipes on groove edge improve traction performance and prevents uneven wear.
ARGUMENT
| SIZE | PR/LR | LOAD INDEX/ SPEED SYMBOL |
STANDARD RIM |
OVERALL DIAMETER (MM/IN) |
SECTION WIDTH (MM/IN) |
SINGLE LOAD (KG/LBS) |
DUAL LOAD (KG/LBS) |
PRESSURE (KPA/PSI) |
TREAD DEPTH (MM/32NDS) |
|---|---|---|---|---|---|---|---|---|---|
| 295/60R22.5 | 16PR | 150/147K(149/146L) | 9 | 926 | 292 | 3350/7390 | 3075/6780 | 900/130 | 15/18.90 |
| 295/80R22.5 | 18PR | 154/149M | 9 | 1044 | 298 | 3750/8270 | 3250/7160 | 850/123 | 15/18.90 |
| 315/70R22.5 | 18PR | 156/150L | 9 | 1014 | 312 | 4000/8820 | 3350/7390 | 900/131 | 15/18.90 |
| 315/80R22.5 | 20PR | 156/150L(154/150M) | 9 | 1076 | 312 | 4000/8820 | 3350/7390 | 850/123 | 15/18.90 |
| 385/65R22.5 | 20PR | 164/158K/L | 11.75 | 1072 | 389 | 5000/11000 | / | 900/130 | 16/20.16 |
| 385/55R22.5 | 20PR | 160/158K/L | 12.25 | 996 | 386 | 4500/9920 | / | 900/130 | 16/20.16 |
